WRDC Wireless Remote Damper Control
The WRDC Wireless Remote Damper Control works with a modulating zone damper to adjust the amount of heating or cooling airflow to a space that is overheated or overcooled to improve comfort and save energy, or to reduce heating or cooling airflow to an unoccupied space to save energy. Airflow to the space can be adjusted in 5% incremenets from 100% to 0% for optimum comfort and energy savings.
FEATURES
- Simple Installation - No new wiring in the home.
- Remote is battery powered and has a 100' wireless range.
- Simple operation - Simply press the Up or Down key to adjust airflow to the space.
- Airflow adjusts in 5% increments.
- Lite key turns on backlight for easy viewing of display at night.
- Multiple dampers can be used to define a space.
- Remote controls up to 8 different spaces.
- A 24VAC, 40VA transformer powers up to 6 dampers.

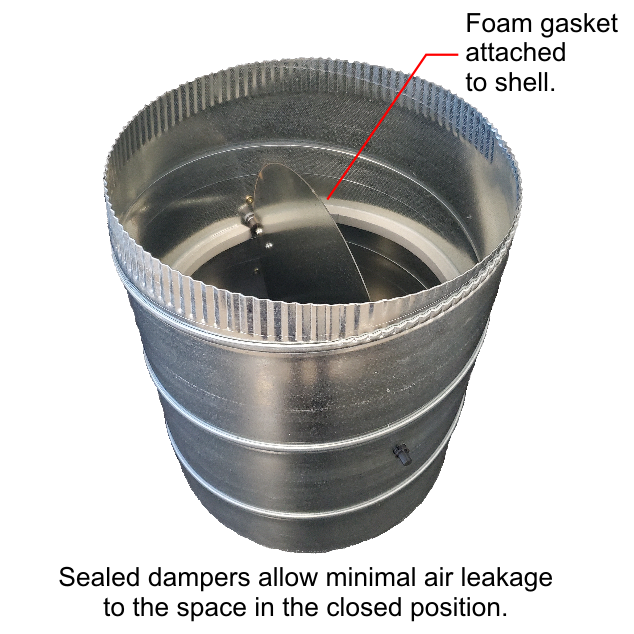

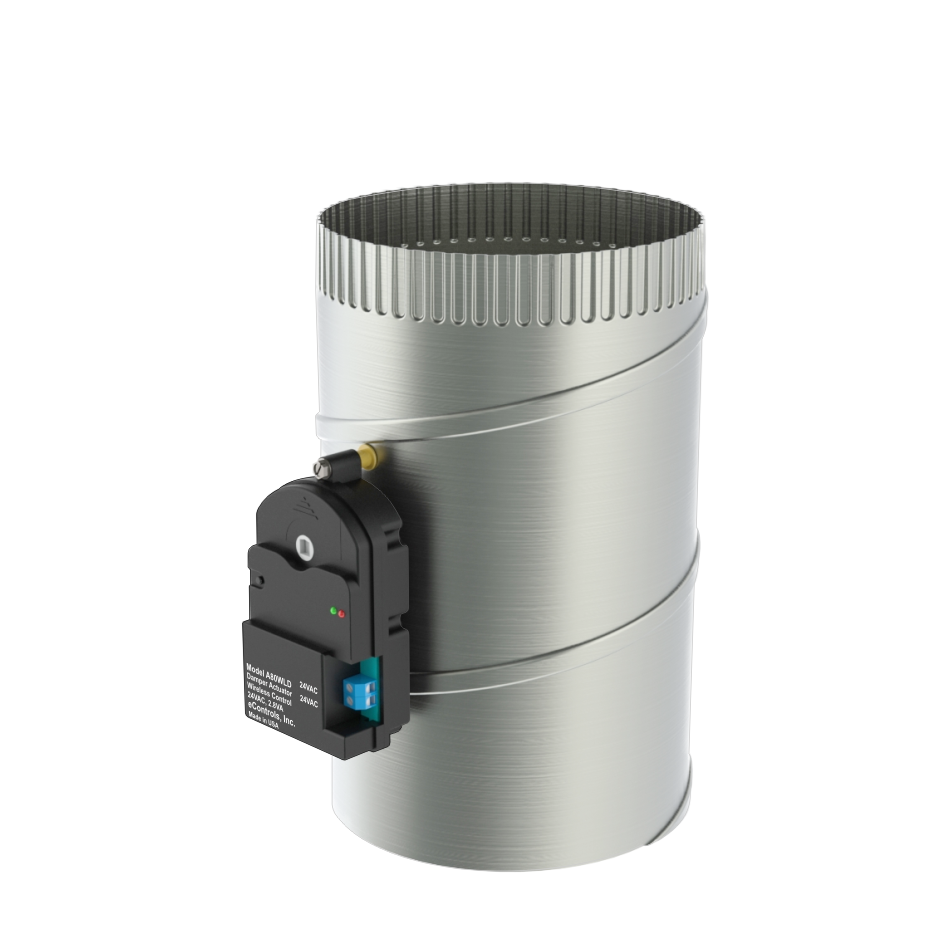

- Compatible with R80DWL Round Unsealed Damper or R80DWLS Round Sealed Damper. The unsealed damper allows some air leakage when the damper is closed and is adequate for most installations. The sealed damper has minimal air leakage.
INSTALLATION OVERVIEW
Install the R80DWL Damper in the trunk line supplying airflow to the space. Wire the damper to a separate 24VAC, 40VA transformer (plug in type ok) using 2-conductor, 18 or 20 gage thermostat cable for power. Power the damper and activate the batteries in the remote - You're ready to control airflow to the space.
