ZCMWLK 2-Zone Wireless Manual Comfort Control Kit
The ZCMWL 2-Zone Wireless Comfort Control works with your existing thermostat to solve the comfort problem found in two-story homes, where the upstairs is too warm during the summer and the downstairs is too cold during the winter. While the thermostat controls the temperature in the home, the ZCMWL is used to manually control the airflow and directs more heating or cooling to the zone that needs it to provide a balanced, comfortable home in every season.
WHAT'S INCLUDED

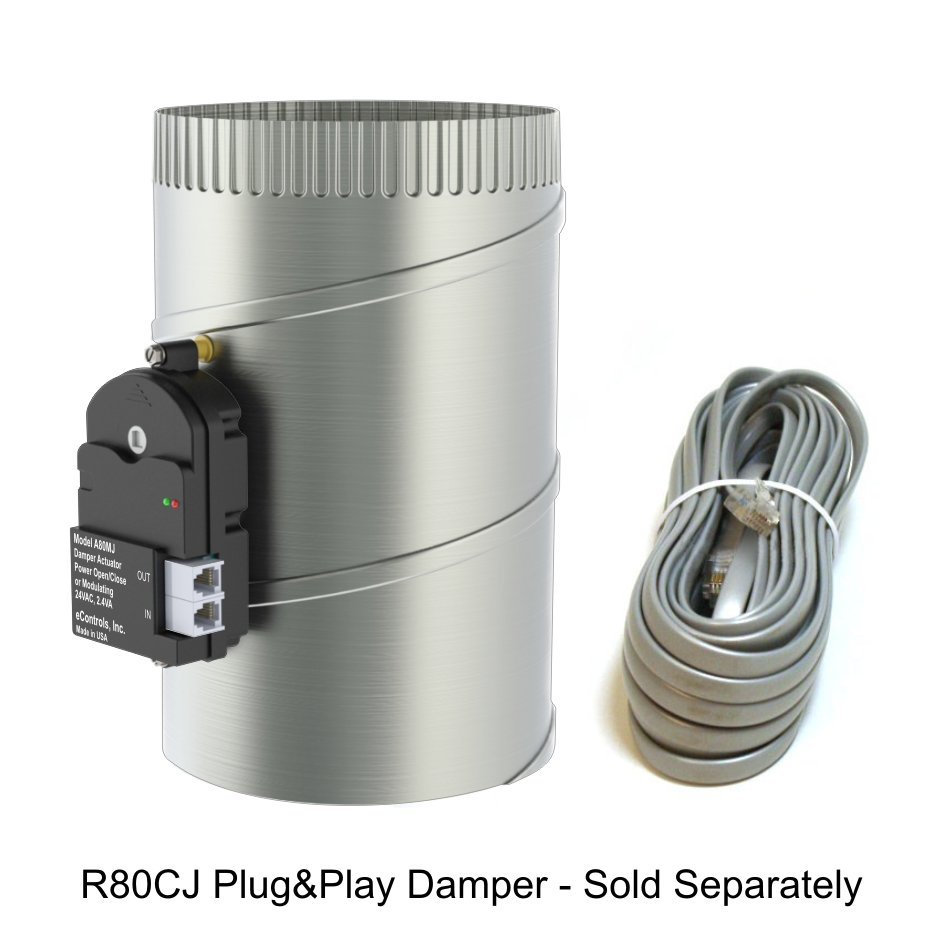

The ZCMWLK kit includes a ZCMWL 2-Zone Wireless Comfort Control and a DC3M Damper Control. The ZCMWLK kit is compatible with the R80CJ Damper or A80MJ Actuator (if you have an eControls damper already installed) - Both are sold separately.
FEATURES
Uniform Comfort Plus Energy Savings
- Balance the upstairs and downstairs temperatures for a uniformly comfortable home by directing more heating or cooling to the zone that needs it.
- Reduces the wasted energy caused by overcooling the downstairs zone in the summer to make the upstairs zone more comfortable or overheating the upstairs zone in the winter to make the downstairs zone more comfortable.
Focused Comfort Plus Energy Savings
- Focus more heating or cooling to the upstairs or downstairs zone as desired and less to the unoccupied zone. Ideal for homes with an upstairs home office or homes where the upstairs is rarely used.
- Reduces the wasted energy used to heat or cool the unoccupied zone and saves energy by satisfying the call sooner or using lower, more energy saving Set To Temperature settings without sacrificing comfort.
Comfort and Energy Savings at Night
- Save 30% in energy at night by directing more heating or cooling to the upstairs sleeping zone and less to the unoccupied downstairs zone.
Compatible Thermostats
- Compatible with any 24VAC thermostat, including smart thermostats, OEM thermostats and simple thermostats. The ZCMWL optimizes the comfort benefits of smart thermostats that use remote sensors while adding valuable energy savings.
Simple Installation
- Requires no wiring within the living space of the home.
- No bypass damper or duct required.
Simple Operation
- Simply turn the knob to direct more airflow to the upstairs or downstairs zone.
INSTALLATION OVERVIEW
The ZCMWL 2-Zone Wireless Comfort Control is installed in the downstairs zone and the DC3M Damper Control is installed near the equipment. The DC3M wires to gas/electric or heat pump equipment terminals R and C for 24VAC power. The R80CJ Dampers (sold separately) are installed in the trunks feeding the upstairs and downstairs zones and connect to the DC3M using the included plug&play cables. No bypass is required.
ZCMWL Manual - User and Installation
